Problem

The GlobalEndpointManager background refresh timer silently stops in multi-writer accounts, preventing the SDK from detecting topology changes (e.g., multi-write to single-write transitions).

Root Cause

In refreshLocationPrivateAsync(), when LocationCache.shouldRefreshEndpoints() returns false, the timer is never restarted:

} else {
    logger.debug("shouldRefreshEndpoints: false, nothing to do.");
    this.isRefreshing.set(false);
    return Mono.empty(); // timer dies here
}

For multi-writer accounts, shouldRefreshEndpoints() returns false when the preferred write endpoint matches the current primary -- a steady-state condition. Once that happens, no further background refreshes occur for the lifetime of the client. Bug has existed since PR #6139 (Nov 2019, point #4 in description).

Behavioral Difference with .NET SDK

The .NET SDK (azure-cosmos-dotnet-v3) handles this correctly in StartLocationBackgroundRefreshLoop():

if (!this.locationCache.ShouldRefreshEndpoints(out bool canRefreshInBackground))
{
    if (!canRefreshInBackground)
    {
        this.isBackgroundAccountRefreshActive = false;
        return; // only stops when canRefreshInBackground is explicitly false
    }
}
// otherwise: delay -> refresh -> loop again

The .NET loop only terminates when canRefreshInBackground is explicitly false -- it continues even when ShouldRefreshEndpoints() returns false.

Fix

Add startRefreshLocationTimerAsync() to the else branch of refreshLocationPrivateAsync():

} else {
    logger.debug("shouldRefreshEndpoints: false, nothing to do.");
    if (!this.refreshInBackground.get()) {
        this.startRefreshLocationTimerAsync();
    }
    this.isRefreshing.set(false);
    return Mono.empty();
}

Unit Tests

6/6 pass:

  • backgroundRefreshForMultiMaster: Updated assertion from assertFalse to assertTrue -- timer must keep running
  • backgroundRefreshDetectsTopologyChangeForMultiMaster: New -- simulates MW to SW transition via mock, verifies writableLocations update from 2 to 1

Live DR Drill Validation

Test Configuration

Setting Value
Account bgrefresh-mw-test-440 (ephemeral tenant)
Regions East US (hub) + West US
Endpoint Global (bgrefresh-mw-test-440.documents.azure.com)
Preferred region West US
Connection mode DIRECT (RNTBD)
Background refresh 30s (overridden via COSMOS.UNAVAILABLE_LOCATIONS_EXPIRATION_TIME_IN_SECONDS=30, default: 300s/5min)
SDK azure-cosmos 4.80.0-beta.1 (patched)

Patched vs Unpatched

Metric Patched Unpatched
Background refreshes (51 min) 103 0
Metadata transitions detected 9/9 0/9
Reads 305 ~20
Errors 0 0 (but topology changes never detected)

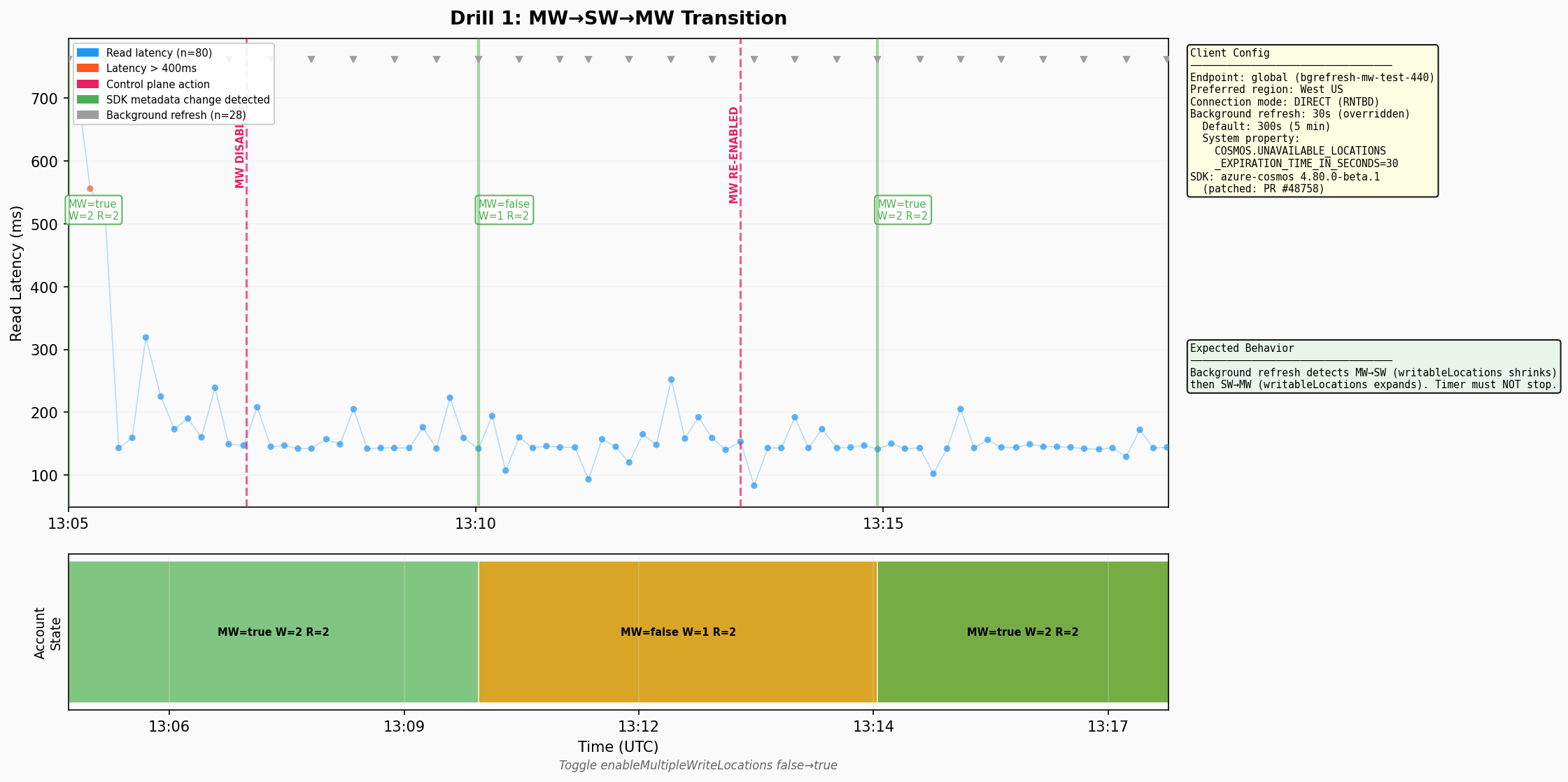

Drill 1: MW to SW to MW Transition

Drill 1

Both transitions detected. writableLocations changed [EUS, WUS] to [EUS] to [EUS, WUS] with ~3 min / ~2 min metadata propagation lag.

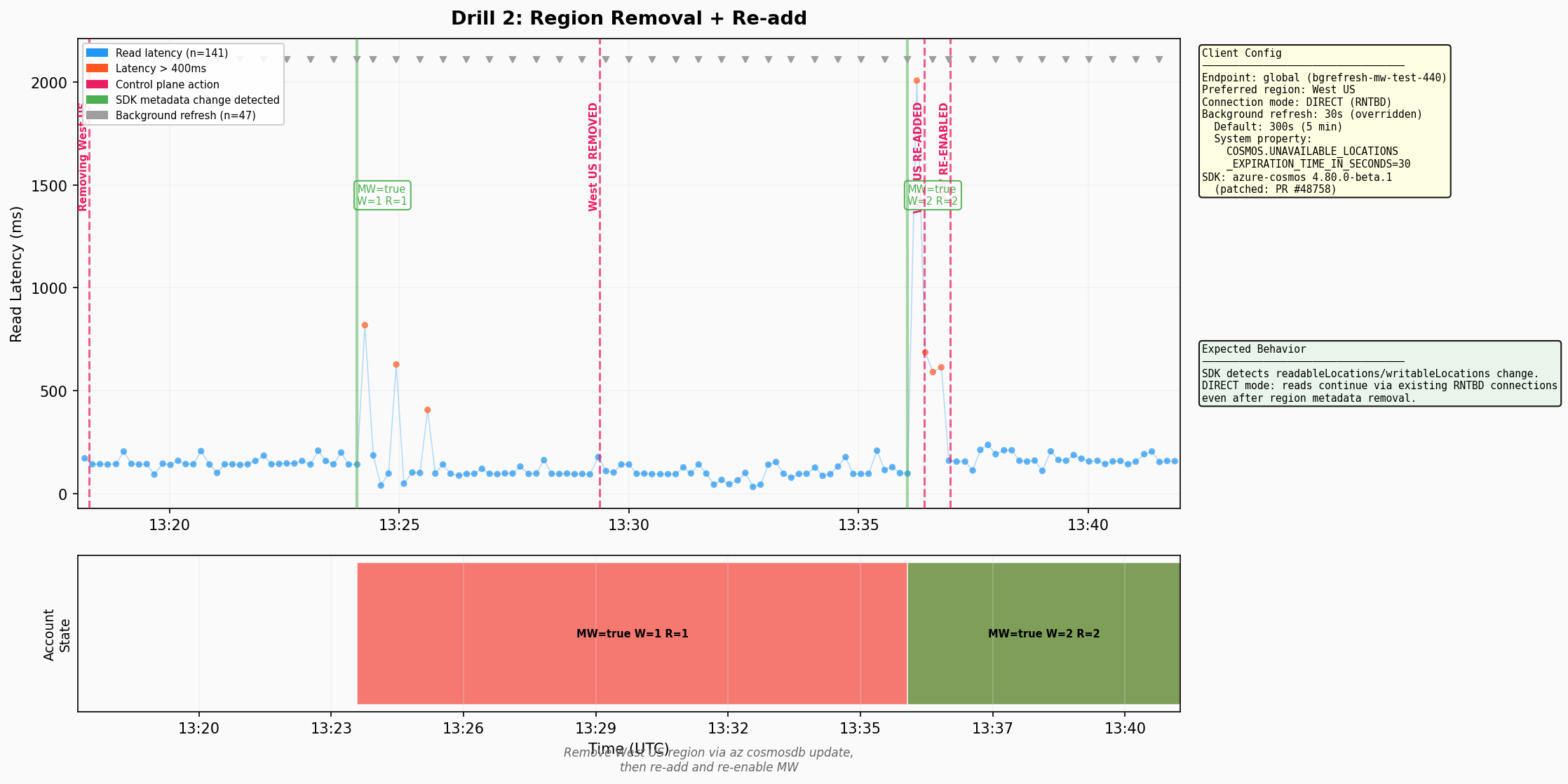

Drill 2: Region Removal + Re-add

Drill 2

Detected. readableLocations shrank from [EUS, WUS] to [EUS] then restored. DIRECT mode note: reads continued via existing RNTBD connections even after region metadata removal (by design).

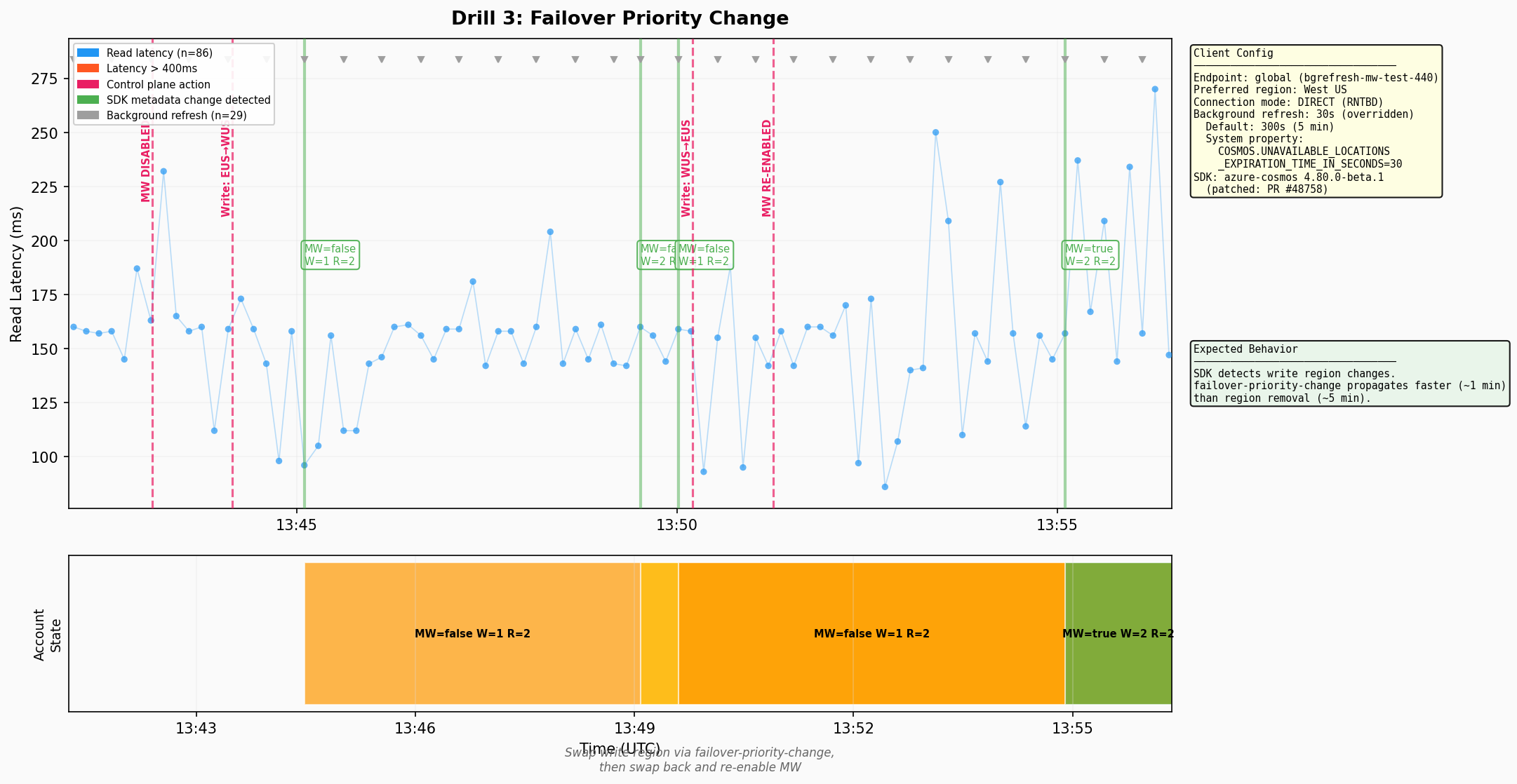

Drill 3: Failover Priority Change

Drill 3

All transitions detected. failover-priority-change propagated fastest (~1 min vs ~5 min for region removal).

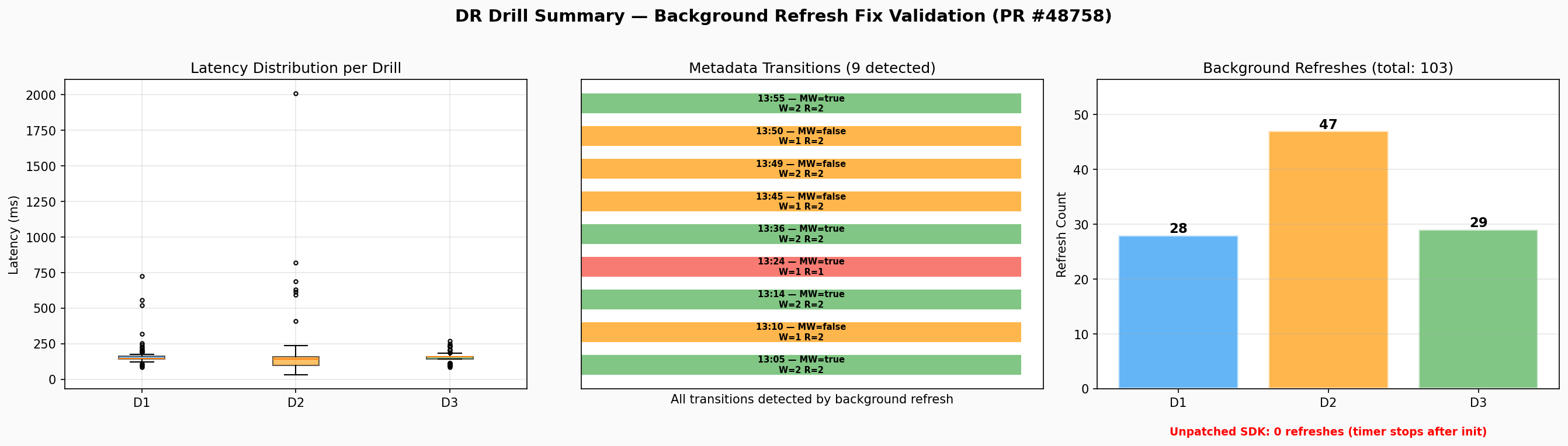

Summary

Summary

Changes

  • 1 file changed, 10 insertions (GlobalEndpointManager.java)
  • 1 file changed, 50 insertions, 1 deletion (GlobalEndPointManagerTest.java)

…unts

In multi-writer accounts, refreshLocationPrivateAsync() stops the background
refresh timer when shouldRefreshEndpoints() returns false. This means topology
changes (e.g., multi-write to single-write transitions) go undetected until
the next explicit refresh trigger.

The .NET SDK (azure-cosmos-dotnet-v3) correctly continues the background
refresh loop unconditionally - the loop only stops when canRefreshInBackground
is explicitly false, not when shouldRefreshEndpoints returns false.

This fix adds startRefreshLocationTimerAsync() to the else-branch of
refreshLocationPrivateAsync(), ensuring the background timer always reschedules
itself regardless of whether endpoints currently need refreshing.

Without this fix, after a multi-write -> single-write -> multi-write transition,
reads remain stuck on the primary region because the SDK never re-reads account
metadata to learn about the restored multi-write topology.

Related: PR Azure#6139 (point #4 in description acknowledged this bug)

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
jeet1995 and others added 2 commits April 9, 2026 21:27
- backgroundRefreshForMultiMaster: changed assertion from assertFalse to
  assertTrue - the timer must keep running even when shouldRefreshEndpoints
  returns false
- backgroundRefreshDetectsTopologyChangeForMultiMaster: new test that proves
  the fix works by simulating a multi-write to single-write transition and
  verifying the background refresh detects the topology change

All 6 GlobalEndPointManagerTest tests pass.

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
Charts and report from live DR drill validation of the background
refresh fix on account bgrefresh-mw-test-440 (East US + West US).

3 drills over 51 minutes, 103 background refreshes, 305 reads, 0 errors:
- Drill 1: MW→SW→MW transition (both detected)
- Drill 2: Region removal + re-add (detected, DIRECT mode connections persist)
- Drill 3: Failover priority change (fastest propagation ~1 min)

Config: Global endpoint, preferred=West US, DIRECT mode, 30s refresh
(overridden via COSMOS.UNAVAILABLE_LOCATIONS_EXPIRATION_TIME_IN_SECONDS).
Unpatched SDK: 0 refreshes (timer stops after init).

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
@jeet1995
Copy link
Copy Markdown
Member Author

DR Drill Test Results

Test Configuration

Setting Value
Account bgrefresh-mw-test-440 (ephemeral tenant)
Regions East US (hub) + West US
Endpoint Global (bgrefresh-mw-test-440.documents.azure.com)
Preferred region West US
Connection mode DIRECT (RNTBD)
Background refresh 30s (overridden via COSMOS.UNAVAILABLE_LOCATIONS_EXPIRATION_TIME_IN_SECONDS=30, default: 300s)
SDK azure-cosmos 4.80.0-beta.1 (patched with this fix)

Summary

Metric Patched Unpatched
Background refreshes (51 min) 103 0
Metadata transitions detected 9/9 0/9
Read errors 0 0 (but topology changes never detected)
Read availability 100% 100% (stuck on stale routing)

Per-Drill Results

Drill 1: MW→SW→MW Transition — Both transitions detected (3 min / 2 min metadata propagation lag)

Drill 1

Drill 2: Region Removal + Re-add — Detected. DIRECT mode note: reads continue via existing RNTBD connections even after metadata removal.

Drill 2

Drill 3: Failover Priority Change — All transitions detected. Fastest propagation (~1 min vs ~5 min for region removal).

Drill 3

Summary

Summary

Full report: dr-drill-report.md

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>
